Bearing Type: Two Ball Bearings
Material: Impeller & Frame: Plastic (UL94V-0)
Lead Wires: UL1007#AWG26
Red Wire Positive (+)
Black Wire Negative (一)
Weight: 50.0g

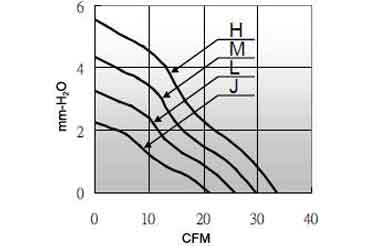

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | R P M | CFM | MmH2O | Db-A |
| WSA07015_12L | B/S | 12 | 7.0~13.2 | 0.1 | 2800 | 21.1 | 2.3 | 27 |
| WSA07015_12M | B/S | 12 | 7.0~13.2 | 0.12 | 3300 | 25.7 | 3.3 | 31 |
| WSA07015_12H | B/S | 12 | 7.0~13.2 | 0.17 | 3800 | 29.6 | 4.3 | 35 |
| WSA07015_12U | B/S | 12 | 7.0~13.2 | 0.25 | 4300 | 33.5 | 5.5 | 39 |
